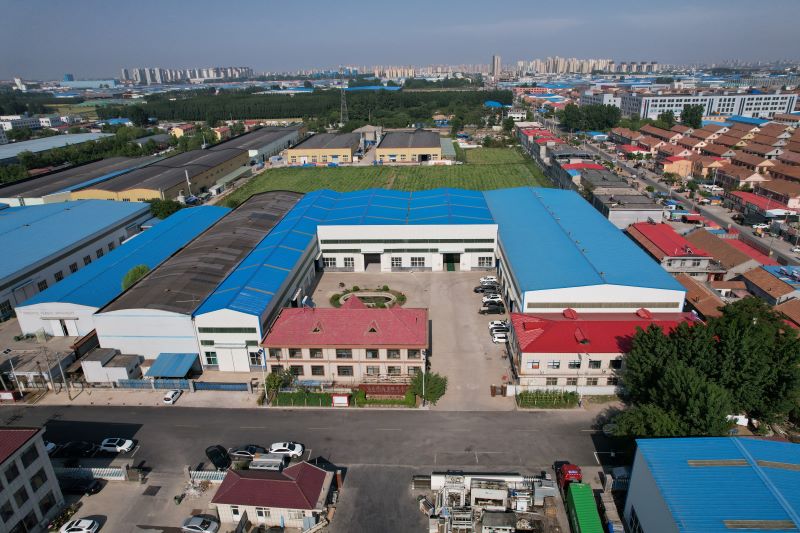

Qingdao Comrise Machinery Co., Ltd.
Our main products are plastic extrusion production lines and WPC Decking Profile Machine
The main products are popular in the domestic market, such as the East China market, Southwest market, Northeast market, Central China market, etc. The products are also exported to international markets, including Russia, Australia, Southeast Asia, the Middle East, and Eastern Europe. Africa and other countries. Customers from these countries have established cooperative relationships with us and the cooperation is very pleasant.

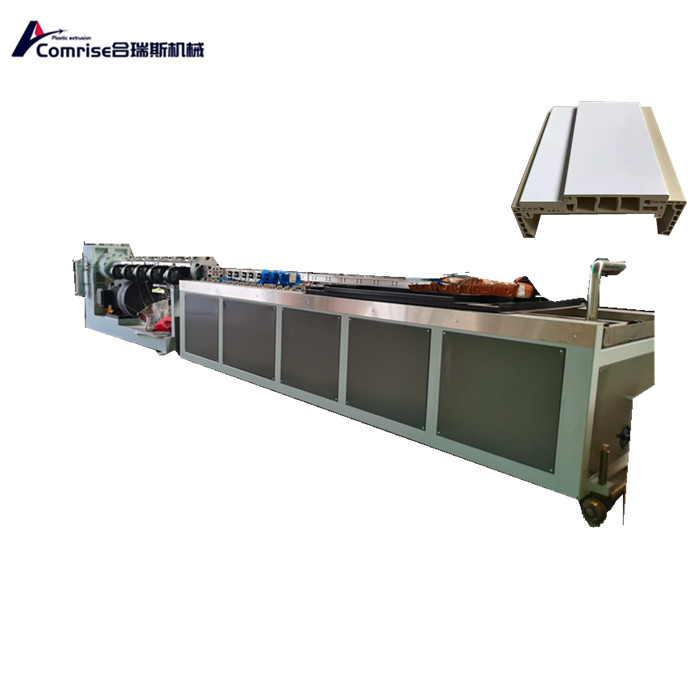

Window Door Profile Machine

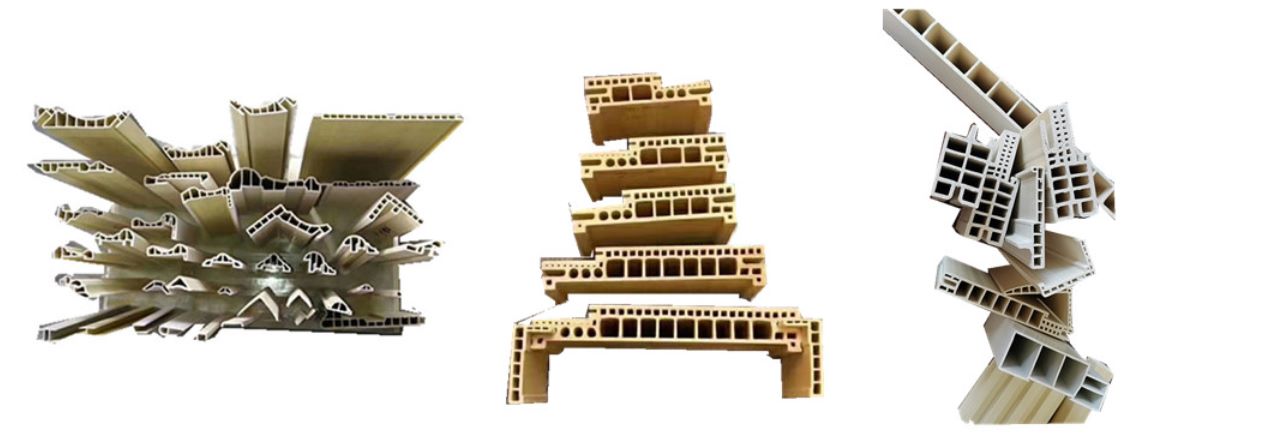

The series profile machine is mainly used for producing PVC door and window profiles, PVC/WPC floor profiles, PVC corner profiles, PVC imitation marble profiles, etc.
This production line consists of twin-screw extruders, vacuum forming tables, tractors, cutting machines, laminating machines, etc., and can meet different customer requirements by simply changing the mold and extruder capacity Usage scenarios.Extremely flexible and convenient.
It is mainly used for making PVC/PE and other plastic profiles with different profile break-section moulds.
It can also produce different Wood+plastic profiles as long as you change moulds.
The production line includes auto feeder, plastic extruder and Co extruder, mould, vacuum forming table, haul off unit, auto
cutting machine, stacker.Auxiliary equipments: mixer, crusher, air compressor and so on.
Specifiation Parameters
Products Description

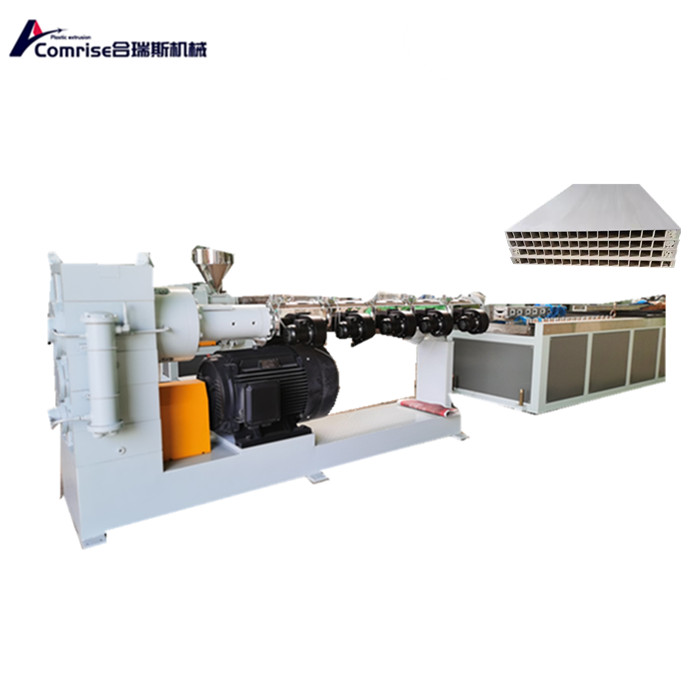

1.SJSZ65x132 Twin-screw Extruder
Extruder model: SJSZ65x132
Capacity: 250kg/h
Frequency converter: Schneider or Delta
Contactor: Siemens
Motor: Siemens, 37KW
Temperature control: Omron
Vacuum pump: 4KW
Feed: Screw feed with motor

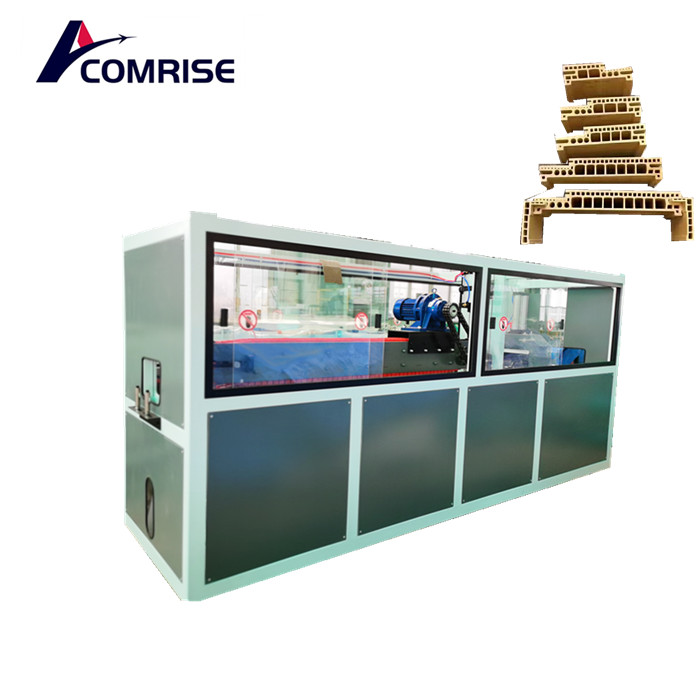

2.Calibration Platform
Length: 3000mm
Electric forward drive motor: 1.5kw
Equipped with vacuum motor and water motor Circulating water cooling platform
Material: Stainless steel
3.Two claw tractor
4.Mixer
Electric voltage condition:AC220V±10% 50Hz 3P+E
Compressed air:0.4~0.6Mpa G.(DP≤10ºC)
Cool off water: ≤15ºC 0.3~0.4Mpa 90L/min
Output: 450-500kg/Power: 55K/75KWtwo speed power
heating method: /self-friction
Temperature control type: RKC/RKC Thermometer
Material of pot cover: The aluminum metal alloy casts
pot cover start&stop control: air control
putout control: air control

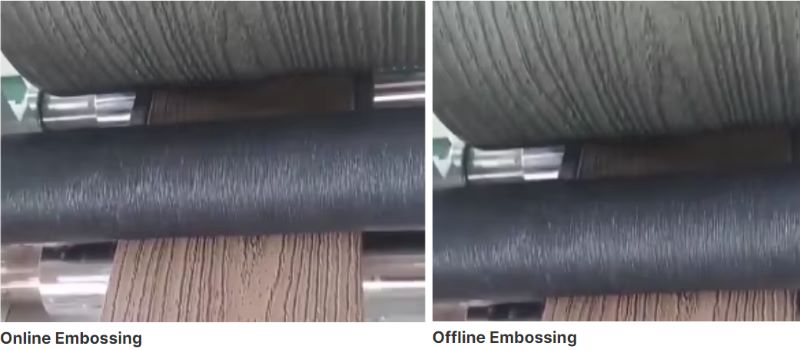

5.Online Embossing
Why Choose Us
Kamrisfabriksdörr och fönsterpanelprofilframställning består huvudsakligen av en konisk tvillingskruv extruder, ett kylbord, en dragmaskin, en skärmaskin och en stapelkran. Having different molds, we can produce various UPVC profiles, such as PVC window and door profiles, PVC wall panels, PVC window sills, cabinet door panels, curtain boxes, PVC trucks, cable conduits, PVC skirting boards, PVC protective corners, etc. And by replacing the screw barrel and mold, PVC based wood plastic products can also be produced, such as wood plastic wall panels and wood plastic windows.
Läs merSkicka förfråganKOMRISE PVC -profilfönsterdörrstram Extrudering MASHING MASHINE Huvudsakligen komponerad av konisk tvillingskruv Extruder, kylbord, dragmaskin, skärmaskin, stackare. Med olika formar kan den producera olika UPVC -profiler, såsom: PVC -fönsterdörrprofil, PVC -profilfönsterstramekstredare, PVC -väggpanel, PVC -fönsterbräda, skåpdörrskort, gardinlåda, PVC -lastbil, kabelkanal, PVC -kjol, PVC -skyddshörn och så är det plastiska maskinförsörjningen
Läs merSkicka förfråganThe Comrise factory offer PVC Door and window panel profile machine mainly consists of a conical Twin S unit E extruder, a cooling T-type machine, a Hailing Machine, a Cutting Machine, and a Stacker Having different molds, we can produce various UPVC profiles, such as PVC window and door profiles, PVC wall panels, PVC window sills, cabinet door panels, curtain boxes, PVC trucks, cable Ledningar, PVC -kjolbrädor, PVC -skyddshörn, etc. Och genom att ersätta skruvfat och mögel kan PVC -baserade WPC -produkter också produceras, såsom WPC -väggpaneler och WPC -fönster
Läs merSkicka förfråganKomrise fabriksdörr och fönsterpanelprofilproduktionslinje är utformad baserad på den senaste internationella tekniken, symmetriskt blandning av PVC med växtfibrer. Anta en effektiv konisk tvillingskruv extruder med ett tvingat kylsystem för extrudering. Träplastskivorna som lanseras på vår produktionslinje har egenskaperna för grönt miljöskydd, fuktmotstånd, korrosionsbeständighet och icke -deformation, vilket gör dem lämpliga för träbearbetningsmetoder och kan återvinnas och återanvändas.
Läs merSkicka förfråganUPVC PVC-dörrpanel och fönsterprofilproduktionslinje används huvudsakligen för att producera PVC-dörr- och fönsterprofiler, PVC/WPC-golvprofiler, PVC-hörnprofiler, PVC-imitationsmarmorprofiler, etc. Denna produktionslinje består av tvillingskruv-extruder, vakuumformande bord, traktorer, skärmaskiner, laminerar, etc., och kan möta och helt och hållet för att ändra mögel- och extrakterskapande mögel- och extrakteriering av mögel- och extrakraftsredskap, scenarier. Extremely flexibel och bekväm.
